High nickel alloy readily with many other metals, including chromium, iron, molybdenum and copper. This allows for a wide variety of alloys that demonstrate outstanding resistance to corrosion and high-temperature scaling, exceptional high-temperature strength and other unique properties, such as shape memory and low coefficient of expansion.

Nickel has been used in alloys that date back to the dawn of civilization. Chemical analysis of artifacts has shown that weapons, tools, and coins contain nickel in varying amounts. Nickel in elemental form or alloyed with other metals and materials has made significant contributions to our present-day society and promises to continue to supply materials for an even more demanding future. Nickel is a versatile element and will alloy with most metals. Complete solid solubility exists between nickel and copper. Wide solubility ranges between iron, chromium, and nickel make possible many alloy combinations.

High Nickel alloys are metals made from combining nickel as the primary element with another material. It merges two materials to deliver more desirable features, such as higher strength or corrosion-resistance. Because of its unique properties, it’s used in a variety of equipment spanning multiple industries. Continental Steel and Tube are specialty suppliers in all grades and forms of Nickel.

Types Of Alloys

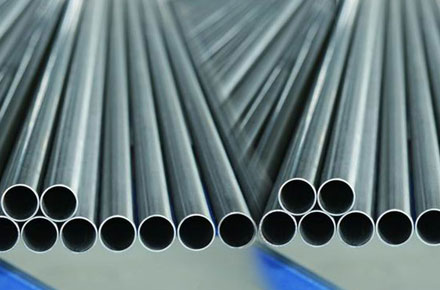

High Nickel Alloy Pipes & Tubes Specification
  • Standard : ASTM / ASME SB 163 / 165 / 167 / 464/ 517 / 619 / 622 / 626 / 704 / 705
  • Size : 1/8” NB to 30” NB
  • thickness : 2.0 mm to 14 mm
  • Types : Seamless, Welded, Fabricated, ERW, LSAW Pipes
  • Form : Round, Rectangular, Hydraulic, Square
  • Lenght : Double Random, Single Random, Cut Length
  • Grade : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

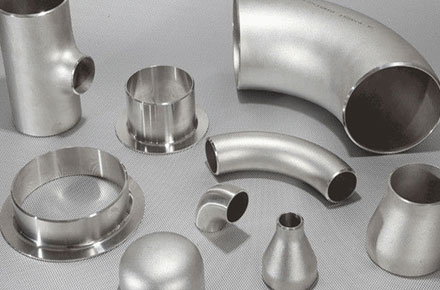

High Nickel Alloy Pipe Fittings Specification
  • Standard : ASTM / ASME SB 336
  • Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
  • Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
  • Type : Seamless / Welded - Elbow, Tee, Cross, Reducer, Nipple, Pipe Cap, Stubend, Bend, etc.
  • Thickness : from 2 to 40 mm
  • Grade : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

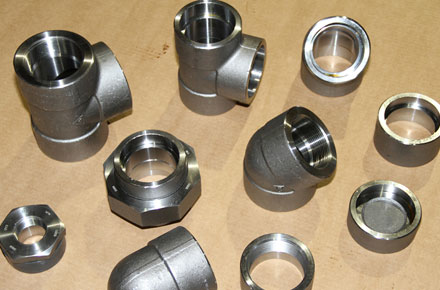

High Nickel Alloy Forged Fittings Specification
  • Standard : ASTM B366 / ASME SB 366
  • Size : 1/2″ NB TO 48″ NB. (Socketweld & Screwed-Threaded)
  • Types : Socketweld Fittings, Screwed-Threaded Fittings
  • Grade : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)
High Nickel Alloy Sheets And Plates Specification
  • Standard : ASTM / ASME SB 162 / 127 / 424 /168 / 443 / 574 / 462
  • Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
  • Thickness : 0.1 mm-120 mm
  • Form : Sheet, Plate, Coil, Flat, Strip, Circle, Profile, Shim, Foil
  • Grade : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

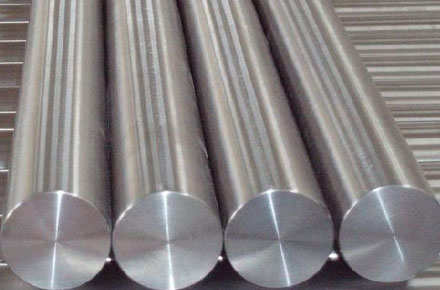

High Nickel Alloy Bars and Rods Specification
  • Standard : ASTM / ASME SB 160
  • Nickel Round bar size : Diameter: 3-~800mm
  • Nickel Hex Bar size : 2-100mm A/F
  • Nickel Alloy Flat bar size : Thickness: 2 -100mm / Width: 10 to 500mm
  • Nickel Square bar size : 4 to 100mm
  • Alloy Angle bar size : 3mm*20mm*20mm~12mm*100mm*100mm
  • Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
  • Form : Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.
  • Form : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

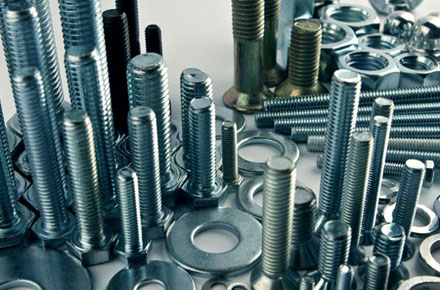

High Nickel Alloy Fasteners Specification
  • Standard : ASTM / ASME SB 163 / 165 / 167 / 464/ 517 / 619 / 622 / 626 / 704 / 705
  • Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
  • Size : M3 - M56 | 3/6" to 2" | Custom Sizes
  • Types : Nuts, Bolts, Screws, Sockets, Studs, Screw, Hex Set Screw, Socket Screw, Cap Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Spring Washers, Studs, Anchors, Marine Anchors, Nut, Hexagon Nut, Hex Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, T-Head Bolts, Wing Screw, Eye Bolt, Foundation Bolts, Structural Bolts.
  • Grade : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

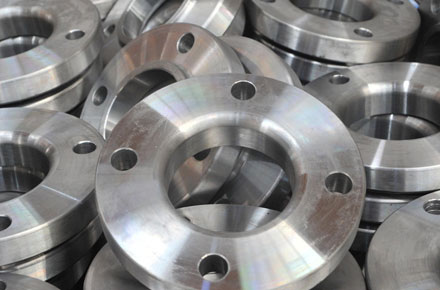

High Nickel Alloy Flanges Specification
  • Standard : ASTM / ASME SB 564 / 160 / 472
  • Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
  • Size : 1/2″NB TO 60″NB
  • Grade : UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

We Deliver in Cities Likes

Mumbai, Pune, Nagpur, Bangalore, Hyderabad, Chennai, Kolkata, Visakhapatnam, Thane, Nashik, Ahmedabad, Surat, Indore, Delhi, Vadodara, Rajkot, Bhopal, Aurangabad, Ankleshwar, Mysore, Coimbatore, kochi (Cochin), Mangalore, Bhavnagar, Assam, Salem, Bhilai, Bikaner.

We Export in Countries Likes

UAE, Saudi Arabia, Kuwait, Oman, Bahrain, Qatar, Iran, Sri lanka, Zimbabwe, Sudan, Russia, Kenya, Tanzania, Nigeria, Uganda, Ghana, Peru, Philippines, Jordan, South Africa, Egypt, Turkey, Singapore, Thailand, Malaysia, USA.

Typical Nickel Alloy Specifications We Trade

Material type Ni Cr Co Mo W Fe Al Ti Cu Nb Other
Hastelloy A 57.00 1.0* 21.00 19.00
Hastelloy B 62.00 1.0* 2.5* 28.00 5.50 0.4% V
Hastelloy D 85.00 1.0* 1.0* 4.0* 9% Si
Hastelloy F 45.00 22.00 2.5* 6.00 1.0* 18.00 2.00
Hastelloy G 44.00 22.00 6.50 1.0* 20.00 2.00 2.00
Hastelloy N 72.00 7.00 0.20 16.50 0.50 5.0* 0.25 0.25 0.01% B
Hastelloy R 66.00 15.50 1.5* 5.00 7.0* 2.20 2.50
Hastelloy S 68.00 15.50 14.50 1.00 0.5%Mn 0.4% Si
Hastelloy W 63.00 5.00 2.5* 24.50 5.50 0.6% V
Hastelloy X 47.00 22.00 1.50 9.00 0.60 18.50
Hastelloy C276 56.00 16.00 2.5* 17.00 4.00 5.50 0.4* 0.35% V
Hastelloy C22 54.00 21.00 2.5* 14.00 3.00 5.0* 0.4* 0.35% v
Hastelloy C4 54.00 16.00 1.25* 16.00 2.0* 0.4* 0.5*
Inconel 600 75.50 15.50 7.00
Inconel 601 60.50 23.00 14.10 1.35
Inconel 702 79.00 15.60 0.40 3.40 0.70
Inconel 713C 72.00 13.40 4.50 1.5* 6.20 1.0* 2.30
Inconel 718 53.00 18.50 3.00 18.00 0.80 5.00
Inconel 800 32.00 20.00 47.00
Inconel 825 40.00 21.00 3.00 32.00 1.00 2.00
Inconel 901 42.00 12.50 1.0* 5.70 35.00 0.35* 2.90
Inconel 792 61.00 12.50 9.00 2.00 3.90 3.20 4.20 4.2% Ta/ 1% Hf
Inconel 738 61.00 16.00 8.50 1.75 2.60 0.50 3.40 3.40 0.90 1.75% Ta
Inconel 939 48.00 22.40 19.00 2.00 1.90 3.70 1.00 1.4% Ta
GMR 235 63.00 15.50 3.20 10.00 3.70 2.00 0.06% B
Nimonic 75 77.00 20.00 5.0* 0.15 0.40
Nimonic 80 74.00 20.00 2.0* 1.5* 1.30 2.20
Nimonic 81 65.00 30.00 1.0* 1.00 1.75
Nimonic 90 57.00 20.00 16.00 5.0* 1.50 2.50
Nimonic 91 47.50 28.50 20.00 1.20 2.30
Nimonic 105 53.00 15.00 20.00 5.00 1.0* 4.70 1.20
Nimonic 115 57.00 15.00 15.00 3.50 1.0* 5.00 4.00
Nimonic C263 50.00 20.00 20.00 5.90 0.75* 0.50 2.20
Nimonic C1023 56.00 15.50 9.50 8.00 0.25 4.30 3.60
GTD 111 59.00 14.00 9.50 1.50 3.80 0.5* 3.00 4.90 2.8% Ta/ 0.02*% B
GTD 222 50.00 22.50 19.00 2.00 0.25* 1.20 2.30 0.80 1.0% Ta
Rene 41 52.00 19.00 11.00 10.00 5.0* 1.60 3.20
Rene 77 (Udimet 700) 52.00 15.00 15.00 4.00 0.5* 4.20 3.50 0.02*% B
Rene 80 60.00 14.00 9.50 4.00 4.00 3.00 5.00
Rene 88 55.00 16.00 13.00 4.00 4.00 0.25 2.10 3.75 0.70 0.02% B
Rene 125 59.00 9.00 10.00 2.00 4.80 2.60 3.8% Ta/ 1.6% Hf / 7% W
Waspalloy 56.00 19.00 14.00 4.20 1.5* 1.40 3.00 0.1% Zr
Udimet 500 53.00 17.50 16.50 4.00 4.00 2.90 3.90 0.01 B
Udimet 520 56.00 19.00 12.00 6.00 1.00 1.00 2.00 3.00
Udimet 600 52.00 17.50 16.50 4.00 4.0* 4.20 2.90 0.04*% B
Mar M 246 600.00 9.00 10.00 2.50 10.00 0.15 5.50 1.50 1.5% Ta
PWA 663 (B1900) 64.00 8.00 10.00 6.00 6.00 1.00 1% Zr/ 4% Ta
Mar M 200 60.00 9.00 10.00 12.00 5.00 2.00 1.00 0.12% B
Mar M 002 59.00 10.00 10.00 10.00 1.0* 5.00 1.50 2.5% Ta / 1.5% Hf
Mar M 247 58.00 8.50 10.00 0.60 10.00 0.5* 5.50 1.00 3% Ta
Alloy 230 57.5 22.00 2.00 14.00 3 0.30 0.1% C/0.5% Mn/0.4% Si
Kovar 29 17 54
N155 (Multimet) 20 21 20 3 2.5 30.35 0.5% C/ Ta 1%/ Si 0.5%
Ni Cr Co Mo W Nb Ta Ti Re Hf Other
PWA 1480 Bal 10 5 4 12 1.5 B-0.003%/ Al 5%
PWA 1484 Bal 5 10 1.9 5.9 8.7 3 0.1 Al 5.6%
PWA 1487 Bal 5 10 1.9 5.9 8.4 3 0.25 Al 5.65%
Rene N4 Bal 10 8 2 6 0.5 5 3.5 0.2 Al 4.2%
Rene N5 Bal 7 8 2 5 6 3 0.2 Al 6.2%
Rene N6 Bal 4 12 1 6 7 5 0.2 Al 5.8%
CMSX-2 Bal 8 5 0.6 8 6 1 Al 5.6%
CMSX-3 Bal 8 5 0.6 8 6 1 0.1 Al 5.6%
CMSX-4 Bal 6.5 9 0.6 6 6.5 1 3 0.1 Al 5.6%
CMSX-6 Bal 10 5 3 2 4.7 0.1 Al 4.8%
CMSX-10 Bal 2 3 0.4 5 0.1 8 0.2 6 0.03 Al 5.7%
CMSX 486 Bal 5 9 0.7 9 4.5 0.7 3 1 C 0.07%/ Al 5.7%/ B 0.015%/ Zr 0.005%
